Gallo Lighting.
The most beautiful pendant solution.

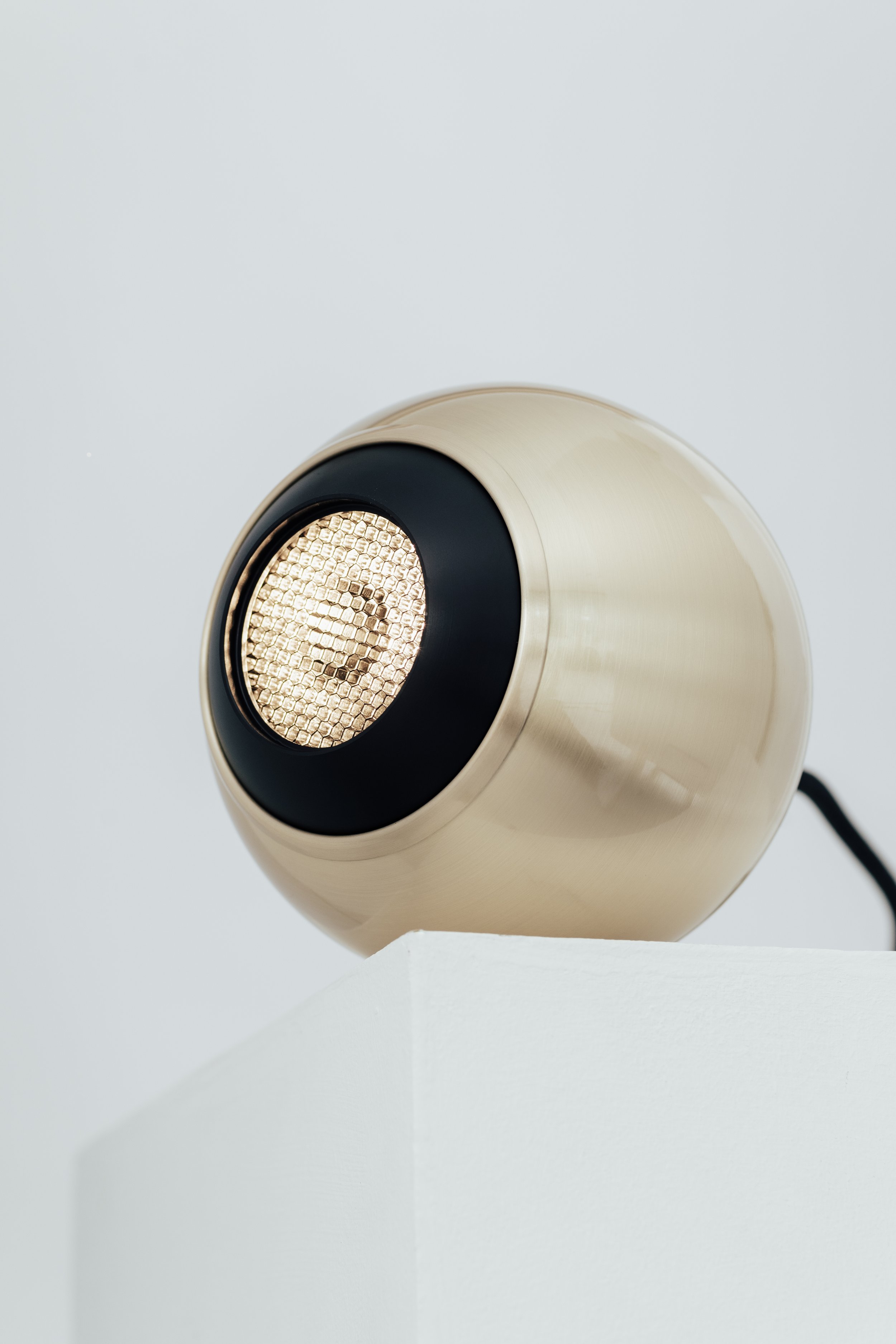

Introducing the Gallo Droplet Light.
With a wide range of standard colours and two sizes to choose from, the Droplet light will add a touch of class to your next lighting project.
Available in two sizes.
The Gallo Droplet Lights are available in two sizes - the 4” Sphere Micro and the 5” Sphere A’Diva.
Both come supplied with a standard 5 metre pendant mounting system.
Colour Options
Choose from a wide range of standard colours, or use Gallo’s Bespoke service to create colours based on a Pantone, RAL or Farrow & Ball code.
Find out more today.
Email gallo@gallolighting.com.au or fill in the contact form below.
Specifications

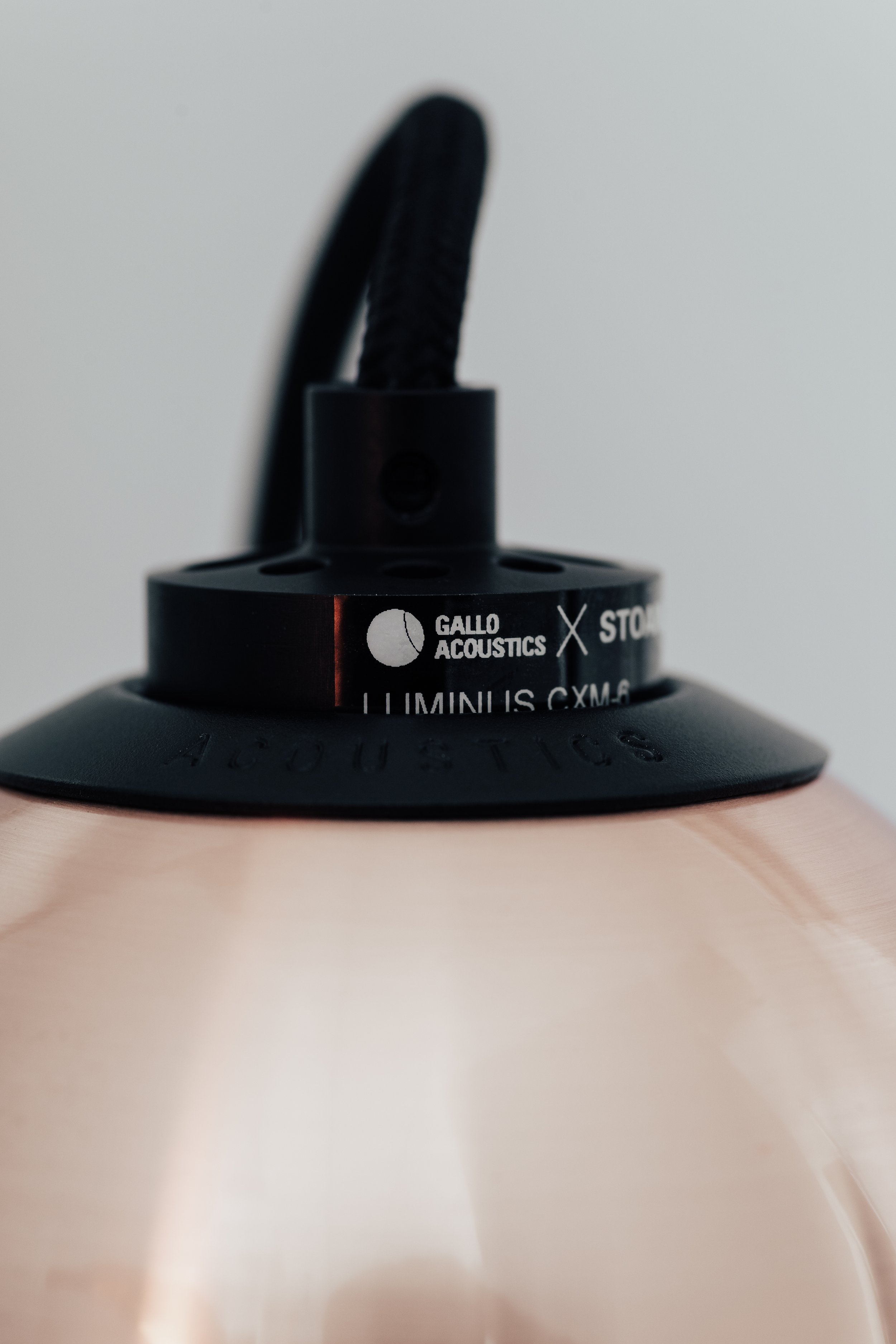

Light Source CXM-6 COB LED
Colour Temperature 2700K
Lumen Output 568 Lumens (delivered with lens and HCL)
CRI Ra: 3 90
Beam Angle 32 degrees or 52 degrees
Dimming 1-10v, DALI, DMX, Wireless or phase (with suitable driver)
Supply 1050mA Constant Current (10 Watts)
Materials/Finish Black Anodised Aluminium and steel
Weight Micro 635g, A’Diva 975g
Maximum pendant drop from ceiling 5m
Drivers
1050mA 48V constant current driver.
Each light fitting is 10.5watts with 20% headroom, so allow for 12 Watt driver.
Run 1 driver per light (1050mA, 12 Watt).
Confirm correct polarity and multiple lights are run in series.
